Steps involved in Digital Image Processing
Digital Image Processing
Digital image processing uses computer algorithms and techniques to manipulate and analyze digital images. It involves using various software tools to improve the quality of images, extract useful information from them, and make them easier to understand.
For example, digital image processing can be used to enhance the contrast, brightness, and sharpness of an image to make it clearer and easier to see. It can also be used to identify specific objects or features within an image or to detect patterns and anomalies that might be difficult to see with the naked eye.

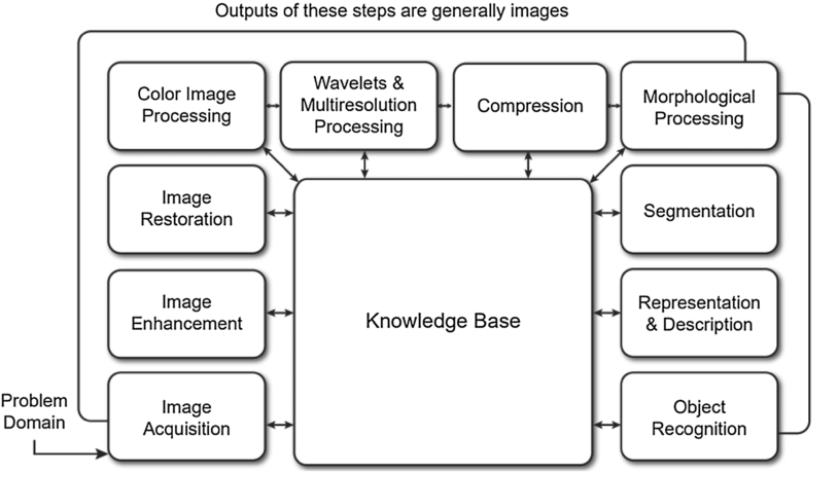

Steps in Digital Image Processing
Image Acquisition:
Image acquisition is the process of capturing and digitizing an analog image into a digital format that can be processed by a computer. In digital image processing, the quality of the resulting image is dependent on the quality of the acquisition process.
The acquisition process involves using a device such as a camera or a scanner to capture the image. The device converts the analog image into a digital format, typically using a sensor or a charge-coupled device (CCD). The image is then sampled and quantized into a matrix of pixel values.
Several factors can affect the quality of the acquired image. These include:
Resolution: The number of pixels in the image, affects the level of detail and sharpness.
Dynamic range: The range of brightness levels that can be captured, which affects the ability to capture both dark and bright areas in the image.
Color depth: The number of bits used to represent each color channel, which affects the range and accuracy of colors that can be captured.
Noise: The random variation in pixel values that can be caused by the imaging device or the environment, which can reduce image quality.
Compression: The process of reducing the size of the digital image file, which can result in a loss of image quality.
To optimize the acquisition process, it is important to choose a device that meets the requirements of the specific application and to properly adjust the settings such as exposure and focus. In addition, post-processing techniques such as noise reduction and image enhancement can be applied to further improve the quality of the acquired image.
Steps in Image Acquisition
The process of acquiring digital images involves several steps, including:
Image Capture: This is the process of capturing an image using a digital camera or scanner. In the case of a digital camera, the image is captured using a sensor that converts light into electrical signals. In the case of a scanner, the image is captured by reflecting light off the surface of the document and recording the reflected light.
Preprocessing: Once the image is captured, preprocessing is carried out to correct any distortions or noise in the image. This may include adjusting the brightness and contrast, removing noise, or correcting any geometric distortions.
Sampling: The next step is to sample the image by dividing it into a set of discrete pixels. The size of the pixel depends on the resolution of the image, which is typically measured in pixels per inch (ppi).
Quantization: The sampled image is then quantized to represent each pixel value by a finite number of bits. The number of bits used for each pixel determines the color depth of the image.
Compression: In some cases, the image may be compressed to reduce its size for storage or transmission. There are different methods of compression, including lossless and lossy compression.
Storage: Finally, the processed image is stored in a digital format, such as JPEG, PNG, or TIFF. The choice of format depends on the application and the desired quality of the image.
Image Preprocessing:
In this step, the acquired image is prepared for further processing by applying various operations such as resizing, cropping, filtering, and noise removal. Resizing involves changing the size of the image, while cropping involves removing unwanted parts of the image. Filtering can be used to remove noise from the image and improve its quality.
Image preprocessing is an important step in digital image processing that involves preparing an image for further processing. The goal of image preprocessing is to improve the quality of the image and make it more suitable for specific applications. Some common operations involved in image preprocessing are:
Resizing: Resizing involves changing the size of the image, either to make it larger or smaller. Resizing is often used to standardize the size of images for a particular application or to reduce the computational requirements of image processing algorithms.
Cropping: Cropping involves removing unwanted parts of the image, either to focus on a particular region of interest or to remove unwanted artifacts or backgrounds. Cropping can be used to improve the composition of an image or to remove irrelevant information.
Filtering: Filtering involves applying various operations to the image to remove noise, enhance edges, or smooth the image. Common filtering operations include median filtering, Gaussian filtering, and high-pass filtering.
Image normalization: Normalization involves transforming the pixel values of an image to improve its contrast and make it more suitable for further processing. Common normalization techniques include histogram equalization and contrast stretching.
Color correction: Color correction involves adjusting the color balance of an image to make it look more natural. Color correction can be used to remove color casts, adjust the white balance, or correct lighting conditions.
Image sharpening: Image sharpening involves enhancing the edges of an image to improve its clarity. Common image sharpening techniques include Laplacian sharpening, unsharp masking, and high-pass filtering.
Image registration: Image registration involves aligning multiple images of the same scene to create a composite image with improved quality or resolution. Image registration can be used to correct motion blur, and camera shake, or to create a panoramic image.
Overall, image preprocessing is an essential step in digital image processing that can have a significant impact on the quality and suitability of an image for further processing and analysis.
Image Enhancement:
Image enhancement is a process of improving the quality and visual appearance of an image by applying various techniques and algorithms. Image enhancement is an important step in digital image processing, as it helps to improve the interpretability and usefulness of an image. Here are some common techniques used in image enhancement:
Histogram equalization: This technique is used to enhance the contrast of an image by redistributing the pixel values to cover the full range of intensities. It works by computing a cumulative distribution function (CDF) of the pixel intensities and then mapping the image pixels to a new intensity range that is more evenly distributed.
Contrast stretching: This technique is used to enhance the contrast of an image by stretching the range of pixel values. It works by selecting a low and high-intensity value, and then mapping the pixel values between these values to the full range of intensities.
Spatial filtering: This technique is used to enhance an image by applying a filter to each pixel or a group of pixels in the image. The filter can be used to smooth or sharpen the image, remove noise, or highlight specific features.
Frequency domain filtering: This technique involves transforming an image into the frequency domain using techniques like Fourier Transform and applying filters to specific frequency ranges to enhance or suppress certain features.
Morphological operations: This technique is used to enhance the shape and structure of an image by applying various morphological operations like dilation, erosion, opening, and closing.
Color correction: This technique is used to adjust the color balance and hue of an image by mapping the color values of the image to a new color space.
Edge detection: This technique is used to enhance the edges and boundaries of an image by detecting the regions of significant changes in intensity.
Image enhancement techniques can be applied either globally to the entire image or locally to specific regions of the image based on their characteristics. The choice of technique depends on the application and the specific goals of image enhancement.
Image Restoration:
Image restoration is the process of improving the quality of an image that has been degraded by various factors such as noise, blur, and distortion. The goal of image restoration is to obtain a better representation of the original image by removing the degradation. Here are some common techniques used in image restoration:
Spatial filtering: This technique is used to remove noise or blur from an image by applying a filter to each pixel or a group of pixels in the image. The filter can be used to smooth or sharpen the image, remove noise, or highlight specific features.
Frequency domain filtering: This technique involves transforming an image into the frequency domain using techniques like Fourier transform and applying filters to specific frequency ranges to remove noise or blur.
Deconvolution: This technique is used to restore an image by undoing the convolution that caused the degradation. Deconvolution is a mathematical process that involves inverting the point spread function of the blur or distortion.
Image inpainting: This technique is used to restore missing or damaged parts of an image by filling in the missing pixels based on the surrounding pixels.
Super-resolution: This technique is used to enhance the resolution of an image by combining multiple low-resolution images of the same scene.
The choice of technique depends on the type and extent of degradation, the characteristics of the image, and the specific goals of image restoration. In some cases, a combination of techniques may be needed to achieve the desired results. Image restoration techniques are widely used in various applications such as medical imaging, surveillance, and satellite imaging.
Image Compression:
Image compression is the process of reducing the size of an image file by removing redundant or irrelevant information while retaining its visual quality. In digital image processing, image compression is used to reduce the amount of data needed to store or transmit an image, which is important for the efficient storage and transmission of large numbers of images.
There are two types of image compression techniques: lossless and lossy compression.
Lossless compression techniques are used to reduce the size of an image file without losing any information. These techniques use algorithms to identify patterns in the image data and replace them with codes that require less storage space. Some examples of lossless compression techniques include Run-Length Encoding (RLE) and Huffman Coding.
Lossy compression techniques, on the other hand, are used to reduce the size of an image file by discarding some of the image data. These techniques identify and remove redundant or irrelevant information that is unlikely to be noticed by the human eye, such as high-frequency noise. Lossy compression techniques can achieve much higher compression ratios than lossless techniques, but at the cost of some loss in image quality. Some examples of lossy compression techniques include Joint Photographic Experts Group (JPEG), MPEG, and Wavelet compression.
The choice of compression technique depends on the requirements of the application. For applications where high image quality is essential, such as medical imaging, lossless compression techniques may be preferred. For applications where efficient storage or transmission is more important, such as web images or video, lossy compression techniques may be more suitable.
The following are the typical steps involved in image compression:
Image Preprocessing: The first step is to preprocess the image to remove any unwanted noise or artifacts that may affect the compression process. This may involve filtering or smoothing the image, as well as adjusting the brightness and contrast.
Color Space Conversion: Images are typically represented in RGB color space, which is not optimal for compression. Therefore, it is often necessary to convert the image to a different color space such as YCbCr or HSL, which separates the color information from the luminance information. This makes it easier to compress the image while preserving its visual quality.
Partitioning: The next step is to partition the image into smaller blocks, which can be compressed independently. This is typically done using a technique such as Discrete Cosine Transform (DCT) or Wavelet Transform.
Quantization: In this step, the transformed coefficients are quantized, which involves reducing the precision of the coefficients to reduce their storage requirements. This is where most of the compression is achieved, but it can also introduce some loss of image quality.
Entropy Encoding: The quantized coefficients are then encoded using a technique such as Huffman coding, Arithmetic coding, or Run-length encoding. This step further reduces the amount of data that needs to be stored or transmitted.
Reconstruction: Finally, the compressed image is reconstructed by performing the reverse process of quantization, inverse transform, and color space conversion. This produces an approximation of the original image, which may have some loss of quality depending on the degree of compression.
These steps can be applied using either lossless or lossy compression techniques, depending on the desired level of compression and image quality.
Image Segmentation:
Image segmentation is the process of partitioning an image into multiple regions or objects based on their characteristics, such as color, texture, or shape. The goal of image segmentation is to separate the different objects or regions in the image to facilitate further processing, analysis, or interpretation.
Here are some common techniques used in image segmentation:
Thresholding: This technique is used to segment an image into two regions based on a threshold value. Pixels with intensity values above the threshold are assigned to one region, while pixels with intensity values below the threshold are assigned to the other region.
Edge detection: This technique is used to segment an image by detecting the edges or boundaries between different regions based on significant changes in intensity or color.
Region-based segmentation: This technique is used to segment an image by grouping the pixels into regions based on their similarity in color, texture, or other features.
Clustering: This technique is used to segment an image by grouping the pixels into clusters based on their similarity in feature space.
Watershed segmentation: This technique is used to segment an image by treating the image as a topographical surface and separating it into different basins based on the local minima.
The choice of segmentation technique depends on the characteristics of the image, the specific application, and the goals of segmentation. Image segmentation is widely used in various applications such as object detection, recognition, tracking, and medical imaging.
Object Recognition:
Object recognition is the process of identifying and classifying objects in an image or a sequence of images. The goal of object recognition is to automatically recognize and localize objects of interest in an image, and to assign them to predefined categories.
Here are some common techniques used in object recognition:
Feature detection and extraction: This technique is used to extract distinctive features from an image, such as edges, corners, or blobs. These features are then used to represent the object and to match it against a database of known objects.
Template matching: This technique is used to recognize an object by comparing it to a template or a model of the object. The template is typically a binary image that represents the object's shape and appearance.
Object detection and classification: This technique is used to detect and classify objects in an image using machine learning algorithms. The algorithms are trained on a set of labeled images, and then used to identify objects in new images.
Deep learning: This technique is used to recognize objects using deep neural networks. The networks are trained on a large set of images, and can automatically learn to extract features and classify objects.
Object tracking: This technique is used to track objects over time in a sequence of images. The tracking can be performed using various techniques, such as optical flow, mean shift, or particle filtering.
The choice of object recognition technique depends on the specific application, the characteristics of the objects, and the goals of recognition. Object recognition is widely used in various applications such as surveillance, robotics, autonomous vehicles, and medical imaging.
Image Analysis:
Image analysis is the process of extracting meaningful information from images using various techniques of digital image processing. The goal of image analysis is to obtain quantitative measurements and features from the image that can be used to support decision-making, classification, or detection.
Here are some common techniques used in image analysis:
Image segmentation: This technique is used to partition an image into multiple regions or objects based on their characteristics, such as color, texture, or shape. The segmented regions can then be used to extract features and measurements.
Feature extraction: This technique is used to extract quantitative measurements and features from the image, such as size, shape, texture, color, or intensity. These features can then be used to classify or detect objects in the image.
Object recognition: This technique is used to identify and classify objects in the image using machine learning algorithms or deep neural networks.
Image classification: This technique is used to categorize the image into predefined classes or categories based on the extracted features and measurements.
Image registration: This technique is used to align multiple images of the same scene or object so that they can be compared or combined.
Image enhancement: This technique is used to improve the quality of the image by removing noise, blur, or distortion, or by adjusting the contrast or brightness.
The choice of image analysis technique depends on the specific application and the goals of the analysis. Image analysis is widely used in various fields, such as medical imaging, remote sensing, microscopy, and industrial inspection.
Image Display and Visualization:
Image display and visualization are important components of digital image processing. They provide a way to view and interpret the processed images and their features. Here are some common techniques used in image display and visualization:
Grayscale display: This technique is used to display the image in shades of gray, with darker shades representing lower intensities and lighter shades representing higher intensities.
Color display: This technique is used to display the image in color, with different colors representing different intensities or features of the image.
Image overlay: This technique is used to overlay two or more images, such as an original image and its processed version, or different channels of a color image.
Histogram visualization: This technique is used to visualize the distribution of pixel intensities in the image, which can provide information about the image's contrast and brightness.
3D visualization: This technique is used to visualize the image in three dimensions, which can provide a better understanding of the image's features and structure.
Interactive visualization: This technique is used to enable the user to interact with the image, such as zooming, panning, and adjusting the contrast and brightness.
The choice of image display and visualization technique depends on the specific application and the goals of visualization. Image display and visualization are widely used in various fields, such as medical imaging, remote sensing, astronomy, and computer vision.
In conclusion, digital image processing involves a series of steps aimed at enhancing and analyzing digital images to extract meaningful information. The steps involved include image acquisition, image preprocessing, image enhancement, image restoration, image segmentation, object recognition, image analysis, and image display and visualization. Each of these steps involves various techniques and algorithms, and the choice of technique depends on the specific application and the goals of processing. Digital image processing has numerous applications in various fields, such as medical imaging, remote sensing, computer vision, and industrial inspection, and it continues to play an important role in advancing scientific research and technology.
